With more than 40 years’ experience in producing engineered grinding solutions for high volume production environments, Curtis Machine Tools continues to enjoy global success with its range of VECTOR production grinding machines and is celebrating the sale of its 100th Vector™ grinding machine into the USA for the production of diesel injection components.

A market survey in 2005 showed that over 90 percent of all grinding applications had a grinding length of less than 75 mm, with the key market being high precision fuel injection components and turbochargers. CMT reacted to this survey and developed the Curtis Vector range with a grinding length of 100 mm maximum and integrated 3- axis loading system designed for high volume cylindrical grinding, typically 250,000 to 1,000,000+ parts per year.

The first Vector grinders were sold in 2006 to a customer in India grinding diesel injection components. From this point, the Vector has seen continuous development, enabling CMT to offer a multitude of options in workpiece presentation and holding. This, combined with process refinements in respect to grit types, grinding fluids and machine parameters has giving the Vector a truly market leading set of performance characteristics.

The key to optimising cycle times on high volume grinding machines is to reduce the ‘dead time’ to a minimum. The VECTOR TWIN is the advanced machine in the range having 2 work spindles, mounted in an indexing drum, allowing loading and grinding operations to be carried out concurrently giving cycle time reductions of up to 50 percent.

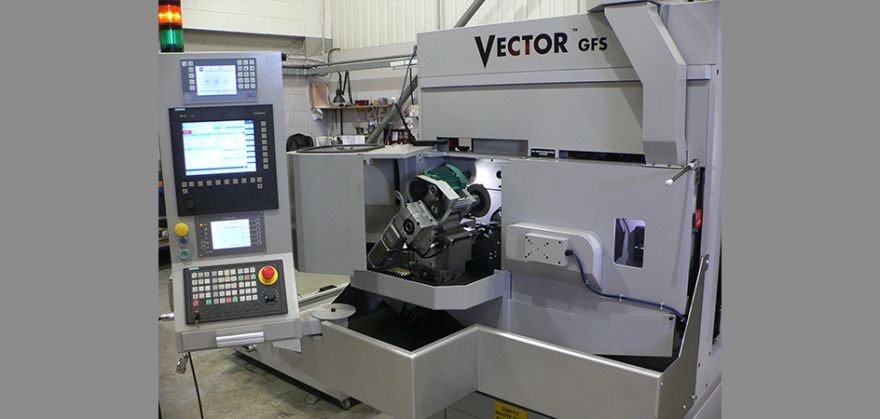

This photograph shows the working area of the VECTOR TWIN with its main features:

Fixed grinding guard (door open), when the door is closed the grinding area is sealed and all coolant & debris is contained. The coolant is piped through the bottom of the guard, mist is removed either by an integrated extractor for conventional grinding. For high-speed grinding a separate unit having a higher capacity is used.

Grinding wheel mounted on cross slides allowing grinding to take place by moving the wheel to the left and dressing by moving to the right.

Dressing unit behind the grinding wheel, either fixed, rotary disc or diamond roll.

The left-hand wall of the fixed guard is a divider plate between the 2 work spindles, these are mounted in a drum that can be rotated through 180 deg to index the spindles between the grinding and loading positions.

The splash guard, shown above the grinding wheel, rotates round the wheel so that, when the wheel is retracted for loading, the splash guard covers the front of the wheel stopping any coolant released by the wheel being thrown past the divider plate as the workhead indexes.

Grinding takes place on the spindle within the dirty area (right hand as shown) while loading takes place on the clean area ( left hand spindle ).

Grinding and loading therefore take place at the same time. The index time for the workhead drum is 1.2 seconds giving a spark to spark time of less than 2 seconds.

In addition, secondary operations can be carried out on the component in the loading position such as brush deburr, post process diameter gauging, pre-process length positioning, washing, laser marking etc.

Because the coolant and grinding debris are totally contained within the fixed grinding guard the part pick / place locations can be close to the work spindle. Loading system can be integrated into the machine without any risk that the loader slides will become contaminated; This makes for short robot movements and allows the machine to have a very small footprint of only 1,200 mm wide including the loading system and pallet storage for the components.

The fixed guard also makes all machines in the Vector range suitable for high speed superabrasive grinding wheels as the wheel and high-pressure coolant are fully enclosed.

The majority of VECTOR Twin machines built to date have been supplied to automotive component suppliers, either for Turbo charger or Fuel injection applications.
